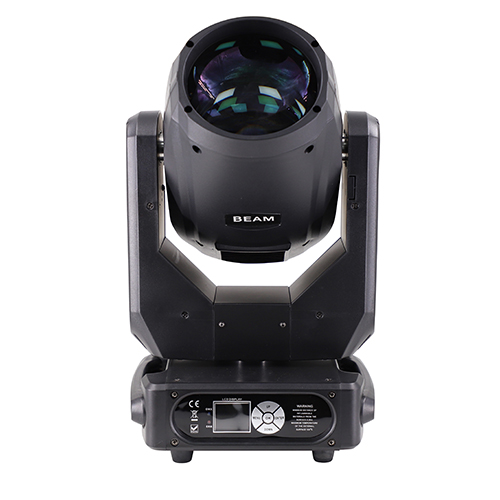

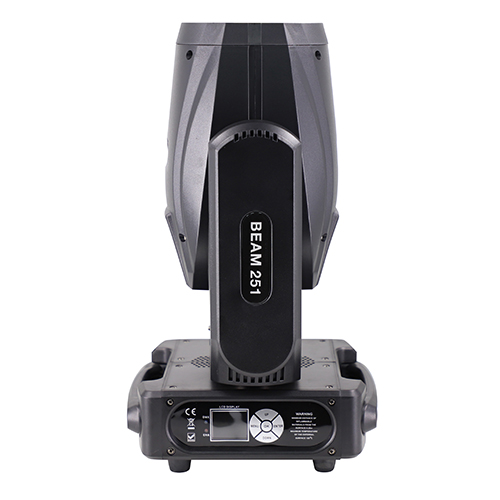

GA087 250W Moving Head Beam


Power supply: AC1 00-240V, 50 / 60Hz

Light source 250W Philips bulb

Power comsumption: 400W

The luminous flux is 7950lm and the colortemperature is 8500K

Ballast: electronic inductance ballast

Control mode: DMX512 / wdmx /self-propelled

Channel: 16 channels

Beautiful dot matrix display, four touchswitch, can reverse 180 ° display

Color disc: a color plate, each color discis composed of 14 color chips + white,

with adjustable rotation speed,bidirectional flowing water effect and rainbow

effect.

Pattern plate: fixed pattern disk, 17pattern effects + white light

Prism: 56 honeycomb prism, 16 prism,biprism can be superposed and can rotate

independently in both directions

The rotation speed is adjustable.

Focus: linear focus, from near to far.

It has atomization function and adjustableatomization speed.0-100% mechanical

dimming, supporting mechanical stroboscopicand adjustable stroboscopic effects,

supporting stroboscopic macro function, mechanicalstroboscopic for 1 -12 f.p.s.

Lens group optical system, electricfocusing, beam angle 0-4 degrees

The photoelectric reset system canautomatically retrieve and reset after accidental

misoperation

Pan 540 ° 8bit / 16bit fine adjustment

Tilt 270 °, 8bit / 16bit fine adjustment

With pan and tilt fine automatic errorcorrection function.Overheating

Protection rate: IP20

AC / DC switching power supply.

LCD display.

Dimension size: 280 * 230 * 490mm

Packing size: 405 × 370 × 530mm

Net weight: 16KG
