Power Supply: AC100-240V;DC±12V/5A; 50/60Hz
Laser source: A(R 150mW 650nm;G 80mW 515nm;B 200mW 445nm )
                    B(R 200mW 638nm;G 100mW 515nm;B 500mW 445nm )
Power Consumption: 15W
Controls: DMX512,Voice control, Auto
DMX Channels: 12 Channels
Life time: 10000 hours
Scanning system: 15K sweep speed, ±20°
Control panel: 4 LCD tube + 4 press bottom
DMX connector: 2×Rj45 input and output
                        2×XLR input and output
Protection rate: IP20
Working environment: up to 40°C
Material: fire-proof ABS plastic, White housing.

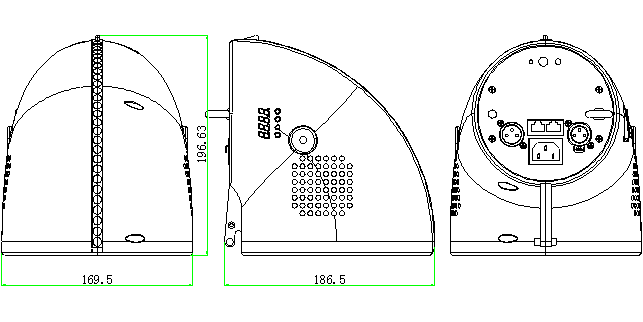

Dimension size: 187×170x197mm
Packing size: 270×270×280mm
                   560×560×305mm (4pcs/ctn)
N.W: 1.4kg
G.W: 2.2kg/10.8kg (4pcs/ctn)


Features: Built-in 128 patterns, 48 animations, with broken pen, strobe, stretch, rotation,
              zoom, flip, shift, fade, speed And color control.
              It can be mounted on the ceiling with SRM701 ceiling buckle, and the projection angle
              can be adjusted (vertical 0-85°).
