HSA001R/G/B/W LED MOVING HEAD SQUARE BEAM

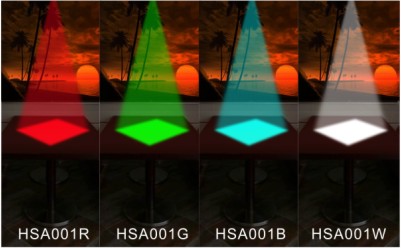

HSA001 is a kindly of 2W LED Moving Head Beam Light, which with R, G, B, W four colors respectively, 360° X-axis rotation and 50° Y-axis rotation. There are 10 DIP switch on the back side of the light, a network cable
socket with one input and one output, and a 12V DC input socket.  It’s easy to control and understand, with small and exquisite appearance, stylish and practical, excellent beam effects. Widely used at home, KTV room, Disco Hall and other small entertainment places.

Light Source: 2W integrated optical,with R, G, B, W four colors respectively.
LED Lamp Life:50000 hours
DIP Switch:10
Control Channel :5  DMX Channels
Control Protocol: International standard DMX512 control protocol
Strobe:High- speed electronic adjustment strobe,  frequency up to 1
 to 20 times / sec
Control Mode:DMX  Control Mode, Sound Activated, AUTO
Optical effects: Strobe
Protection Rating:IP20
Input Power:Adapter AC100-240V  Light DC12V
DMX Socket:RJ45 network socket with one input and one output.
Power consumption:13W
Working Environment:up to 40℃
Lighting maximum surface temperature:50℃
Dimension:140.8×¢102
Gift box Package:250X150X115 (1pc/CTN)
Master Package:505X460X365(18pcs/CTN)
N.W:0.71Kg (1PC)
G.W:1.05 kg (1PC)
Application Fields: Widely used at Home, KTT room, Disco Hall, and small
entertainment places, etc.
