SA052 is a 575WMoving Head Spot, which has a perfect appearance design and many excellentfunctions. The high-quality lens system can make a best spot effect; efficientand precise motor provides a full range of scanning ; a high speed rainboweffect .Special gobos wheels system can make many infinite variety of dynamicpattern effects.

Suitable for:Large and medium-sized entertainment places such as Bar, Disc club, show bar;auditorium, multi-purpose hall, banquet hall and others small or medium-sized performingplaces.

Ⅰ. Light Source

Lamp type：HMK 575W, JENBO lamp(optional: withoutlamp)

Typical lumenmaintenance rate：70% @ 750 hours

Ⅱ. Optical Effects

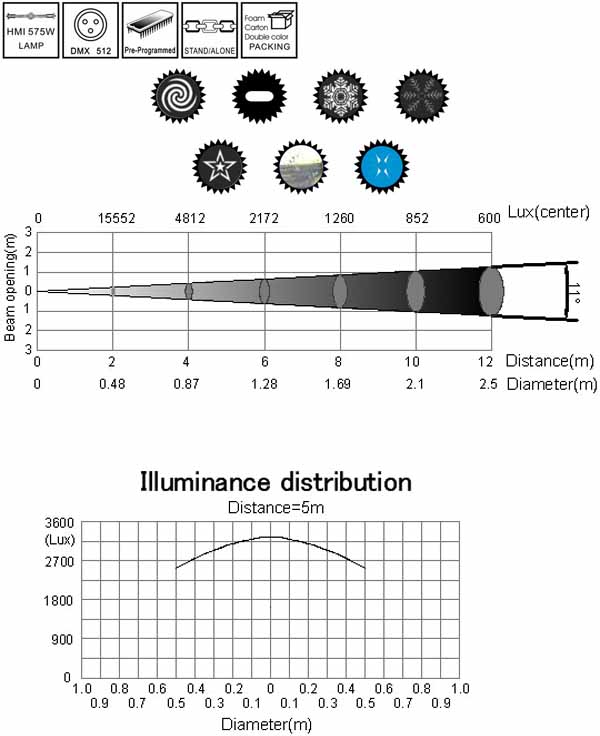

Beam angle:11°

Color temperature:6000K

Dimming:High-precision 0 ~ 100% linear dimming

Colors: One colorwheel 7colors+white, with high-speed semi-color switch and rainbow function.

Gobo wheel： 6 plug gobos + white, easy to handle

0~100% linear zoomeffect

Two-pieceadjustable frequency dimming and random strobe effect

Ⅲ.  Electrical parameters

Power supply: AC220V,50/60Hz; AC 110V,50/60Hz

Power consumption：800 W

Ⅳ.Mechanical parameters

Length：380 mm ( 15" )

Width：470 mm ( 18.5")

Height：480 mm ( 19")

Packing size：545×500×575 mm

                         1040×500×700 mm（2PCS/CTN）

N.W：26 kg

G.W：31.3 kg

Ⅴ. Temperature characteristics

WorkingEnvironment：up to 40℃

Temperatureprotection：Overheating protection function

Ⅵ. Light Control

Display: LCDdisplay

Channel: 14 DMXchannels

Srobe : 1 ~ 10times / second, variable speed flash

Dimmer：0~100% Electronic linear dimming function

Rotation:Pan540°  Tilt 270°

Ⅶ. Safetyand appearance

Housing:Fiber-reinforced composites, anti-ultraviolet (UV)

Protection rate：IP20

• SA052.R20
