GA078 featureshigh speed with powerful motor inside, and three individual lighting displayfunction can produce diverse colors. This light has the same color wheel andgobo wheel as standard Sharply and gobos and color together eight facet prismthat produces unexpected effects. Narrow beam effect come out from high qualityfocus lens will shock you throughout of the whole performance with great strobeeffects.

This light haswild applications like stages, studios, meeting/report halls etc that make it apowerful light of beam light.

This light haswild applications like stages, studios, meeting/report halls etc.

Ⅰ. Light Source

Light source:OSRAM 132W

Typical lumenmaintenance rate: 70% @ 60000 hours

Ⅱ. Optical Effects

excellent dimming

Beam angle:0~3.2 °

One color wheel 13colors +white with rainbow effect and half the color effect

14 plug gobos +white With shaking effect and two-way transmission flow effect

Rotation prism canbe rotated forward and reverse,with prism positioning function

High quality lenswith focus function

Excellent lampwith7950 lumen and the color temperature 8300k

0~100% linearfrost effect

0~100% lineardimming

Built-in randomstrobe program

Ⅲ. Electrical Specification

Power supply: AC100 -240V,50/60Hz.

Powerconsumption:250 W

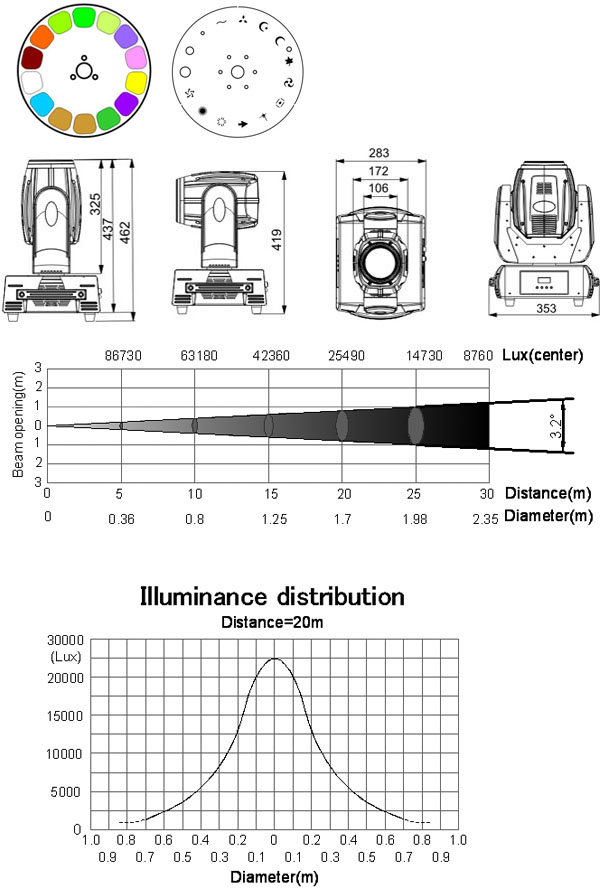

Ⅳ.Mechanical Specification

Length: 353 mm (13.9" )

Width: 283 mm (11.1")

Height:462 mm (18.2")

Packing size:480×440×610 mm

N.W: 17.8 kg

G.W: 20.5 kg

Ⅴ. Temperature Specification

WorkingEnvironment: up to 40℃

Over-heat protectfunction

Ⅵ. Light Control

Display: LCDdisplay

Channels: 16 DMXchannels

Strobe: mechanicstrobe effect with high frequency 14 times/second; macro function.

Dimming: lineardimming (0 ~100%)

Rotation : Pan 540°，tilt 270 °

8 bits or 16 bitsprecision control with variable speed

Ⅶ.Safety and appearance

Housing: Made byhigh-temperature resistance plastics

Perfect appearancedesign

Protection rate：IP20

• GA078 2R.R20
