SPM301 LED movign head Beam

SPM301 is apowerful stage beam light ,which delivers extremely bright,strong and punchybeam light output .it is easy to use, the intelligent control program sbuilt-in the product ,so it can easily create all kinds of dynamic color and flasheffect

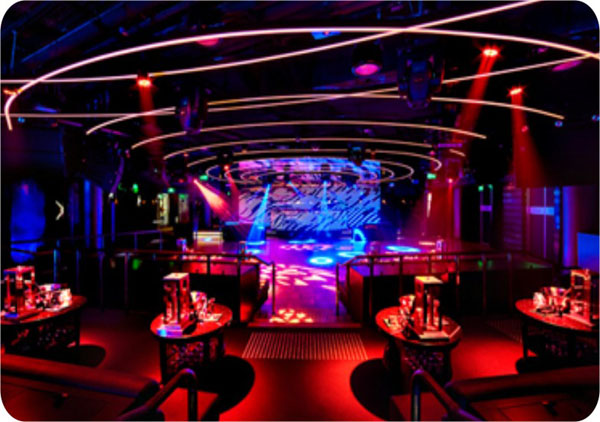

Suitable for :Bar,Dance hall, Arts performing, Nightclub, KTV room and the other medium andsmall-sized performing places.

SPM301 ischaracterized by low-energy, green environmental, high safety,perfectappearance and long life.



Ⅰ. Light Source

Lamp type:36×3W LED(R:12 G:12 B:12)

Typical lumenmaintenance rate:70% @ 50000 hours

Ⅱ. Optical Effects

Optical lens withhigh luminous effect

0~100% linearelectronic dimming function

With RGB linearcolor mixed function

With RGB rainboweffect

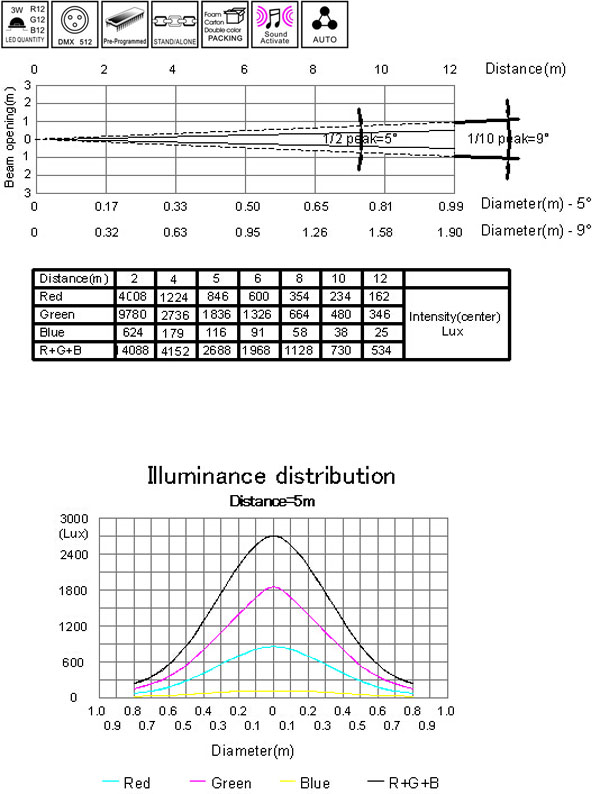

Electronic flash:independent flash, frequency is up to 1~18 times/second Beam angle up to 8°

Ⅲ. Electrical Specification

Power supply:AC 100-240V,50/60Hz

Power consumption:150W

Ⅳ. Temperature Specification

Length:245 mm ( 9.6" )

Width:235 mm ( 9.3")

Height:345 mm ( 13.6")

Packing size:300 x 288 x 430 mm

N.W:5.5 kg

G.W:6 .5 kg

Ⅴ. Temperature Specification

WorkingEnvironment:up to 40℃

Overheatingprotection function

Ⅵ. Light Control

Display: LEDdisplay

Channel: 14 DMXchannels

Flash:Electronic adjustable flash with highspeed, frequency is 1~18 times/seconds

Dimmer:0~100% linear electronic dimming function

Rotation:Ultra micro and smooth scanning in wildscope, pan 450°Tilt 270° with automatic error correction

With 8-bit and16-bit rotation accuracy, precise positioning, rotation speed adjustable

Controls: Soundactivate, Auto, Master/slave, DMX

Ⅶ. Safetyand appearance

Perfect appearancedesign.

Protection rate:IP20

Overheating protection


Display case
