SPM300 LED Moving Head Wash

SPM300 is widelyused in bars, KTV rooms with entertainment lighting spread requirement inmedium or small occasions. This light is a good choice for entertainment sbecause of gorgeous appearance with high safety care, long life span of lightsource & energy saving.

It has excellentcolor mixing, soft & pure lighting output. High efficiency electronicdriving makes it energy saving and built-in program friendly produces diversecolors and strobe effects



Ⅰ. Light Source

Light source: LED36x1W(R12;G12;B12)

Typical lumenmaintenance rate: 70% @50000 hours

Ⅱ.Optical Effects

High qualityoptical lens

Beam angle: 11°

Linear electronicdimming 0-100%

RGB color mixing& dimming; RGB water flow effect.

High frequencystrobe effect with variable speed: 1-18 times/second

Ⅲ.Electronic Specification

Power supply:AC100~240V, 50/60Hz.

Power consumption:80W

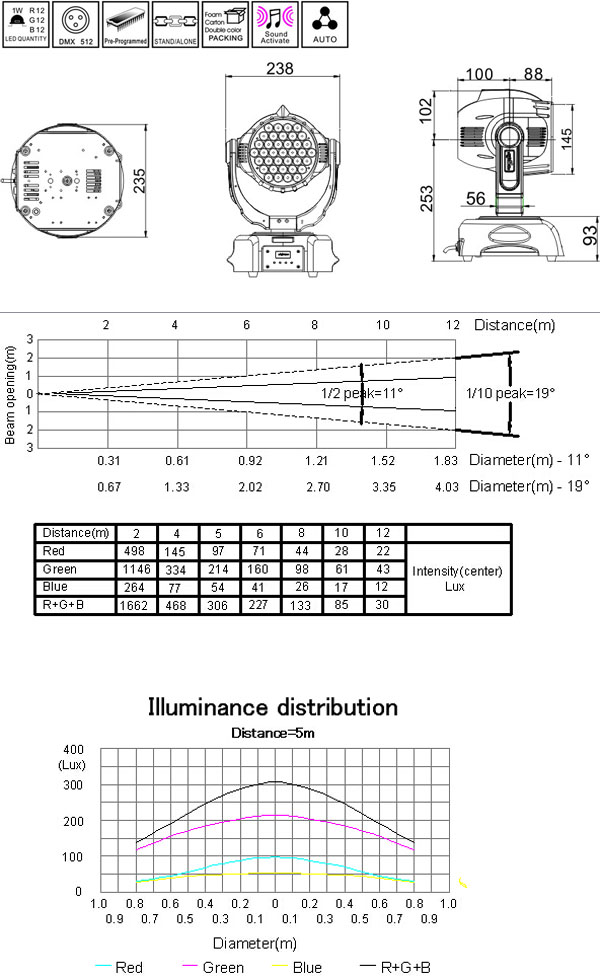

Ⅳ.Mechanical Specificaton

Length: 245 mm(9.6”)

Width: 235 mm(9.3”)

Height: 345 mm(13.6”)

Packing size:300×288×430 mm

N.W: 5.5 kg

G.W: 6 kg

Ⅴ. Temperature Specification

WorkingEnvironment: up to 40℃

Temperatureprotection: Overheating protection function

Ⅵ.Light Control

Display: LCDdisplay

Channels: 11 DMX channels

High frequencyelectronic strobe effect adjustment;18 times/second

Dimming:electronic dimming (0 ~100%)

Rotation: Pan450°,tilt 270 °and auto error correction;

8 bits or 16 bitsprecision rotation control

Controls:Master/Slave, DMX, Auto,Sound activate

Ⅶ. Safety &appearance

Housing:Made byheat resistance plastic

Protection rate:IP20


Display case
