SPB313 is LED moving head spot light, it iseasy to operate with built-in program that is freely to produce gobos, strobeeffect and diverse colors.

 Suitable for: entertainment occasions likebars; and other usage such as meeting halls and multi-function meeting rooms etc.

 Ⅰ.Light Source

Light source: LED 60W (white color)

LED life span: 50000 hours

Lumen maintenance: 70% at 50000 hours

 Ⅱ. Optical Effects

High quality optical lens

Beam angle: 13°

Color temperature 6000K – 7500K

7 colors plus white color; rainbow effecton double directions

Gobo wheels: gobo I with auto rotation ofeach gobo (7 gobos plus white color); gobo II (7 gobos plus white color)

Prism wheel: three facet prism withrotation on double directions and navigation function

 Ⅲ. Electronic Specification

Multi voltage with electronic power supply

Voltage/Frequency: AC100 to AC240V;50/60Hz.

Power consumption: 160W

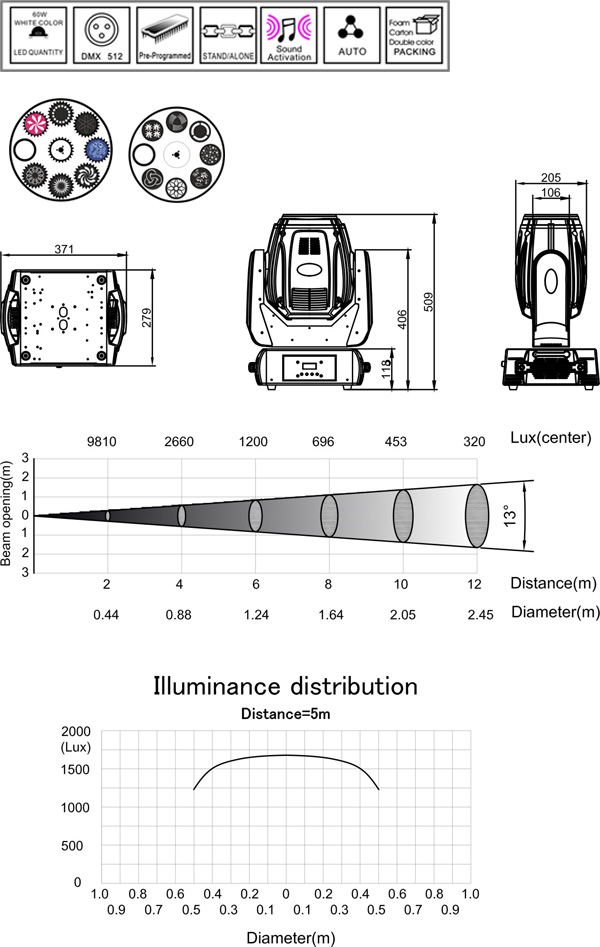

 Ⅳ.Mechanical Specification

Length: 371mm (14.6”)

Width: 279mm (15”)

Height: 509mm (20”)

Net weight: 12.73kg

Gross weight: 14.68kg

Packing (carton): 480*440*610mm

 Ⅴ.Temperature Specification

Max operation temperature: 40℃

Over-heat protect

 Ⅵ.Light Control

Display: LCD display

Channels: 15 DMX channels

Control system: DMX512

Strobe: mechanic strobe effect with highfrequency 18 times/second

Dimming: electronic dimming (0 – 100%)

Rotation: Pan 540°，tilt 270 °and auto errorcorrection

8 bits or 16 bits precision control andspeed adjustable

Power input & output accesses

• SPB313.R20
