SPB312 is LED(60W)moving head spot light, it is easy to operate with built-in program that isfreely to produce gobos, strobe effect and diverse colors.

Suitable for:entertainment occasions like bars; and other applications such as meeting hallsand multi-function meeting rooms etc.

Ⅰ.Light Source

Light source: LED60W (white color)

Typical lumenmaintenance rate: 70% @ 50000 hours

Ⅱ. Optical Effects

High qualityoptical lens

Beam angle: 13°

Color temperature6000K – 7500K

7 colors pluswhite color; rainbow effect on double directions

Gobo wheels: gobo1 with auto rotation of each gobo (7 gobos plus white color); gobo 2 (7 gobosplus white color)

Prism wheel: threefacet prism with rotation on double directions and navigating function

Ⅲ. Electronic Specification

Power supply:AC100-240V,50/60Hz.

Power consumption:160W

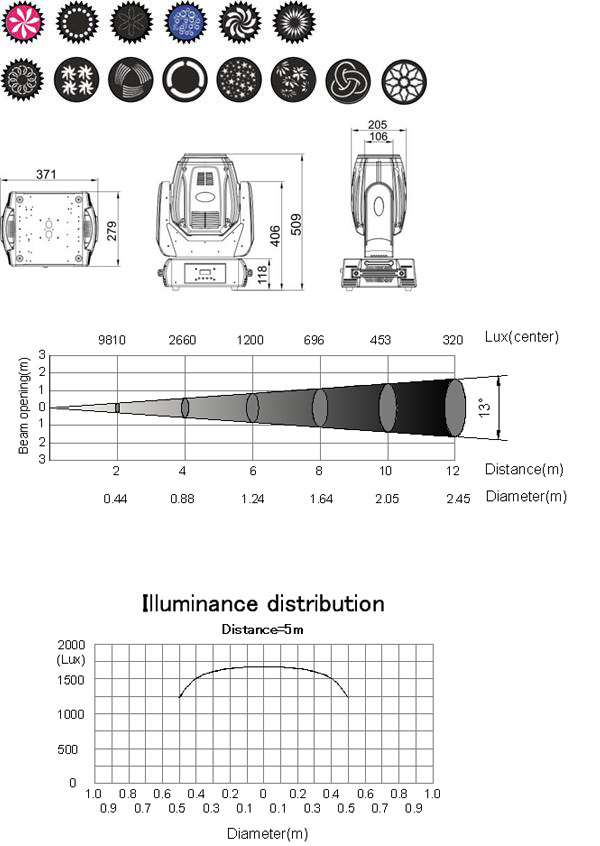

Ⅳ.Mechanical Specification

Length: 371 mm(14.6”)

Width: 279 mm(11”)

Height: 509 mm (20”)

Packing size:480×440×610 mm

N.W: 12.73 kg

G.W: 14.68 kg

Ⅴ.Temperature Specification

WorkingEnvironment: up to 40℃

Over-heat protect

Ⅵ.Light Control

Display: LCDdisplay

Channels: 15 DMXchannels

Strobe: mechanicstrobe effect with high frequency 18 times/second

Dimming:electronic dimming (0 ~100%)

Rotation: Pan540°,tilt 270 °and auto error correction

8 bits and 16 bitsprecision control and speed adjustable

Power input &output accesses
