SPB005B is a LEDmoving head wash light which is characterized by low-energy, environmental,high safety, perfect appearance design. Accurate and efficient motor canprovide full range of scan smoothly and rapidly. Its gobos and color wheelsystem create also excellent dynamic colorful effects and vivid patterneffects.

Suitable for: Bar,Dance hall, Arts performing, Auditorium, Lecture hall, Multi-purpose hall,party and the other Large and medium-sized performing places.

Ⅰ. Light Source

Lamp type：84×3W LED ( R:22 G:22 B:22 W:18)

Typical lumenmaintenance rate：70% @ 60000 hours

Ⅱ. Optical Effects

High opticalhoneycomb lens creates high evenly mixing color effect

Beam angle: 25°(45°selection)

RGBW and 8 or 16bit accuracy color mixing

White 3200~8000K,color temperature adjustable

Unlimited RGBWvirtual color mixing system with RGB virtual color wheel

Three differentkinds of dimming curve inner selection program/strobe/color changeable/colorfading/color mixing/mixing color system strobe/fade-in and fade-out/RGBW colormixing

Ⅲ. Electrical Specification

Power supply：AC 100-240V,50/60Hz

Power consumption：300W

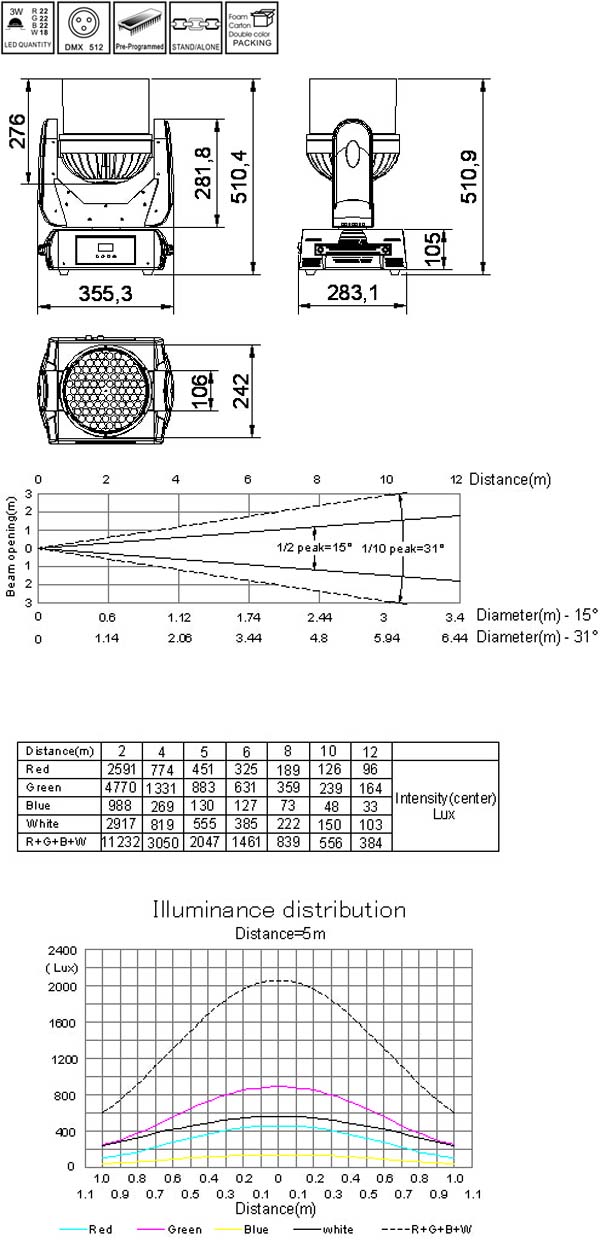

Ⅳ. Mechanical Specification

Length：354 mm ( 13.9" )

Width：283 mm ( 11.1")

Height：516 mm ( 20.3")

Packing size：610 x 480 x 440 mm

N.W：14.5 kg

G.W：17.4 kg

Ⅴ. Temperature Specification

WorkingEnvironment：up to 40℃

Ⅵ. Light Control

Display: LCDdisplay

Channel: 13 DMXchannels

Controls: Soundactivate, Master/Slave, Auto, DMX

Strobe：Frequency is 1~18 times/second

Dimmer：0~100% linear electronic dimming function

Rotation: Pan540°   Tilt 200°

With 8-bit and16-bit rotation accuracy, precise positioning, rotation speed adjustable,automatic error correction

Ⅶ. Safetyand appearance

Housing: Made byhigh-temperature resistance plastics

Perfect appearancedesign

Protection rate：IP20

• SPB005B-14CH.r20
