SPB011 is widelyused in bars, show bar, performing bar, nightclubs and other medium-sizedentertainment places. It has beautiful housing and features low-carbon, greenenergy, long life and high safety performance; It is also a super-fast ultimatestage lighting. With the high precision motor, it can operate smoothly onhorizontal and vertical with high speed... With the LED light sources, it cancreate unlimited dynamic color effects.

Ⅰ. Light Source

Light type: 7×15WRGBW

Typical lumenmaintenance rate: 70% @ 600000 hours

Ⅱ. Optical Effects

Optical lens withhigh luminous effect

Small beam angle:7°

CTO filter

White color isadjustable on temperature color( 3200K/5600K/8000K)

RGBW(CMY), 8 or 16bit precise color mix

With RGB rainboweffect

RGBW zone withmacro function

Color displayseffects with changeable speed in dynamic district

0-100% lineardimming

Adjustablefrequency with dynamic flash effect

Built-in randomflash program

Ⅲ. Electrical Specification

Power supply: AC100-240V, 50/60HZ

Power consumption:120W

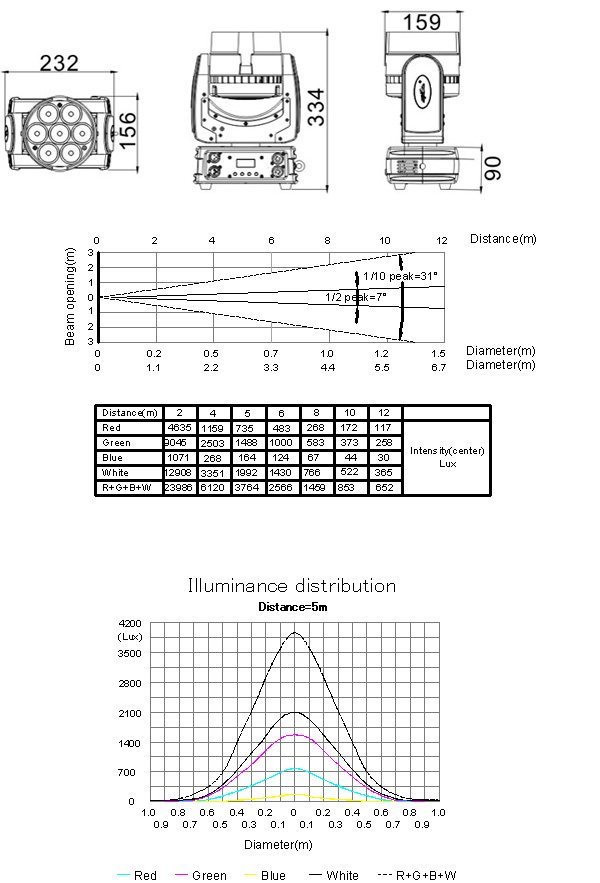

Ⅳ.Mechanical Specification

Length: 232 mm(9.1")

Width: 159 mm (6.2")

Height: 334 mm (13.1")

Packing：300×290×430 mm

             620×600×455 mm(4PCS/CTN)

N.W: 4.8 kg

G.W: 6.6 kg

Ⅴ. Temperature Specification

WorkingEnvironment: up to 40℃

Over-heat protectfunction

Ⅵ. Light Control

Display: LCDdisplay

Channels: 13 DMXchannels

Strobe: mechanicstrobe effect with high frequency 1~18 times/second

Dimming:electronic dimming (0~100%)

Rotation: Pan450°, tilt 200° and auto error correction

8 bits and 16 bitsprecision control, speed is adjustable

Power input andoutput accesses
